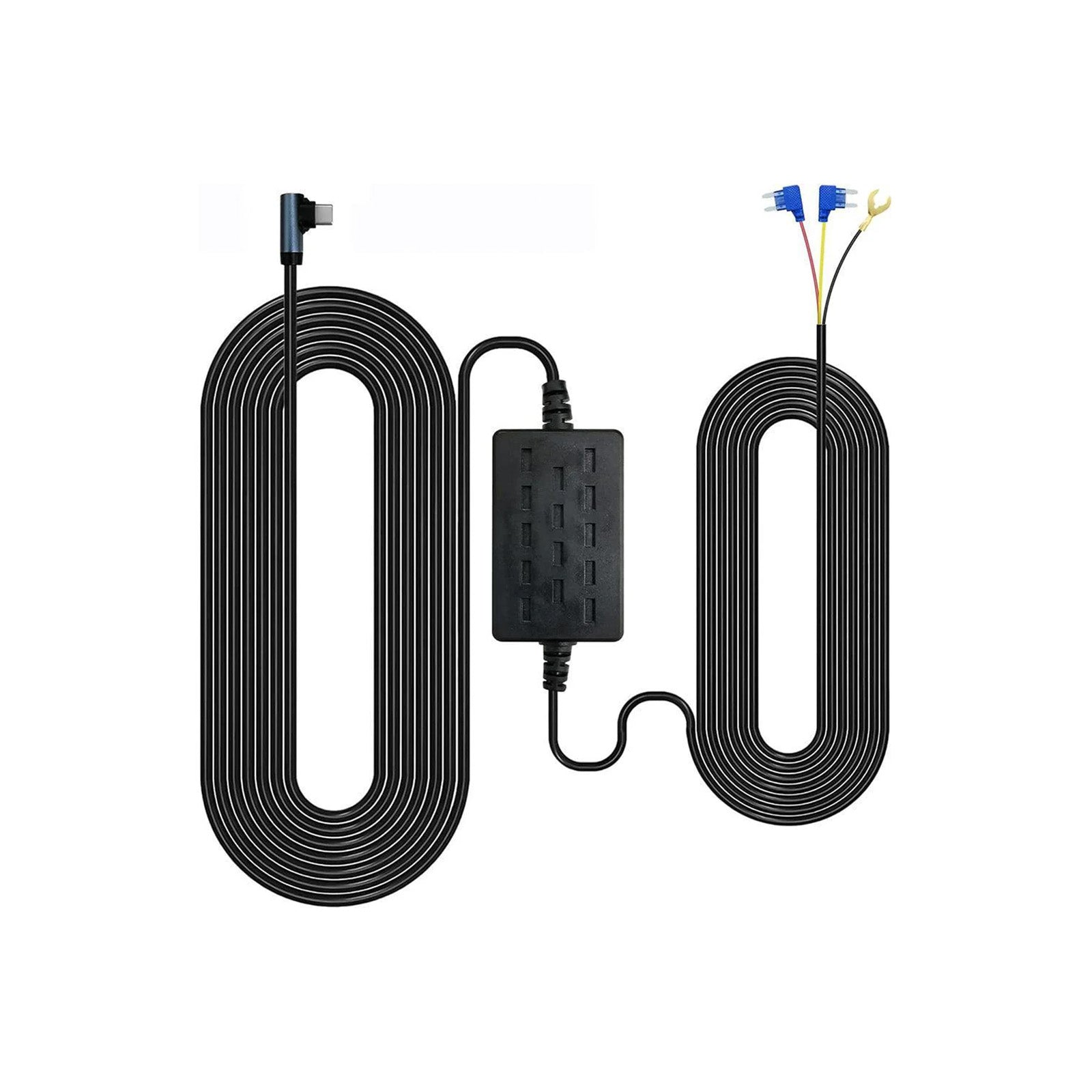

GKU 3M ACC Hardwire Kit for Dash Cam | 24H Parking Mode Power Cable

The GKU ACC Hardwire Kit connects your dash cam directly to the vehicle fuse box, providing continuous power for compatible parking monitoring features while keeping your installation clean and cable-free.

• 24H Parking Mode Support

• ACC Automatic Detection

• 12V–24V Vehicle Support

• USB-C 5V/3A Output

• Low-Voltage Battery Protection

Need help installing your hardwire kit?
Click to view the instruction manual: User Manual

The GKU ACC Hardwire Kit keeps your compatible dash cam powered after the engine is turned off, allowing parking monitoring to continue while your vehicle is unattended.

Built-in ACC detection automatically recognizes the vehicle's ignition status:

Engine On → Driving Recording
Engine Off → Parking Monitoring

Compatible with 12V–24V vehicle electrical systems, including cars, SUVs, EVs, trucks, vans and buses.

Depending on your dash cam model, parking monitoring may include:

G-Sensor Collision Detection
Automatically starts recording when an impact or sudden vibration is detected.

Time-Lapse Recording
Records continuously at a lower frame rate to capture longer parking periods while reducing storage and power consumption.

Designed for compatible USB-C dash cams, the GKU ACC Hardwire Kit delivers stable 5V/3A power for reliable recording and parking monitoring.

The GKU ACC Hardwire Kit includes multiple built-in safety protections to help provide stable power while reducing the risk of excessive battery drain.

• Low-Voltage Protection

• Over-Current Protection

• Short-Circuit Protection

• Reverse Connection Protection

• Overheat Protection


When battery voltage drops to approximately 11.6V for 12V vehicles or 23.5V for 24V vehicles, the hardwire kit automatically cuts power to help preserve enough battery power to start your vehicle.

Note: This kit is not compatible with Mini USB or Micro USB dash cameras and is not recommended for vehicle electrical systems above 24V.

Benefits

• Reduces visible cable clutter

• Keeps the cigarette lighter port available

• Creates a cleaner, factory-style appearance

• Provides a permanent power connection

• 11.5 ft / 3.5 m cable for flexible routing


Wiring Guide

Red Wire — ACC
Connect to a fuse that receives power when the ignition is on.

Yellow Wire — BATT
Connect to a constant-power fuse.

Black Wire — GND
Connect to a suitable metal grounding point.

This hardwire kit includes a Mini fuse adapter.

If your vehicle uses a different fuse type, please choose the GKU hardwire kit with multiple fuse adapters, which includes:

• Low-Profile Mini

• Mini

• ATO / Regular

• Micro2

Professional installation is recommended if you are unfamiliar with vehicle fuse boxes or automotive wiring.

Follow the installation images below for a quick overview, or watch the video for a complete step-by-step guide.
